Equipments provided for the project, including

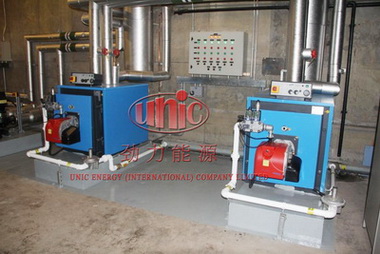

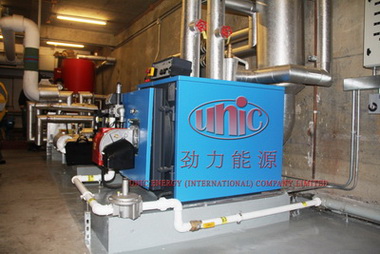

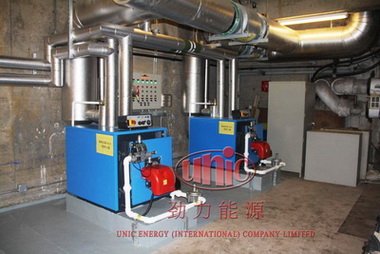

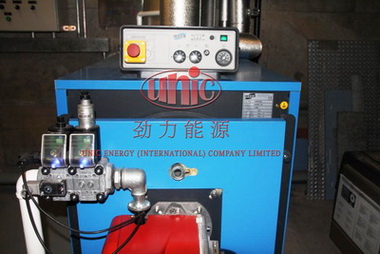

(1) 2 units IVAR Hot Water Boiler SupeRAC 105 (熱水鍋爐)
輸出功率 Nominal Output ： 104.7 kW (90,000 Kcal/hr)
工作壓力 Working Pressure ： 5 bar
原 產 地 Origin ：意大利 Italy

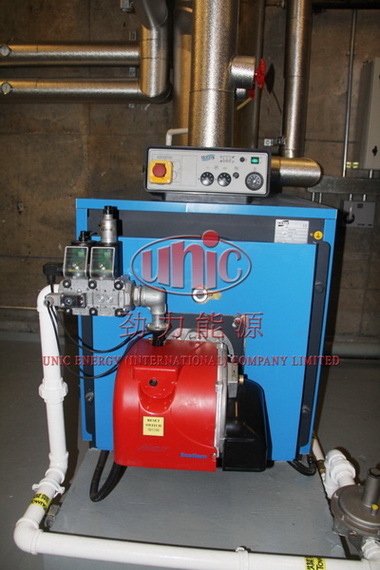

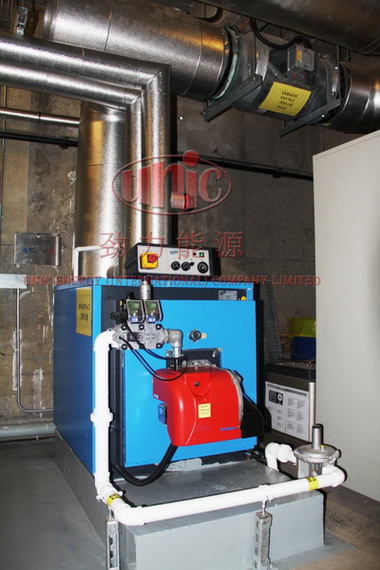

(2) 2 units ECOFLAM Town Gas Burner MAX GAS 170 P TL
(煤氣燃燒器及管道組件)
控制模式 Operation Mode：一段火控制1-stage (on-off)
輸出功率 Output Capacity：55~175 kW (47,400 ~ 151,000 Kcal/hr)
燃 料 Fuel ： 香港城市煤氣 Hong Kong Town Gas
原 產 地 Origin： 意大利 Italy
氣體管導 Gas Train ：
gas solenoid valve 電磁閥VCS 240 – Rp 1½”,
governor w/filter element 穩壓閥含過濾網FGDR 40 – Rp 1½”,
brown spring FGDR 32-40 啡色彈簧 (65~139 mbar)

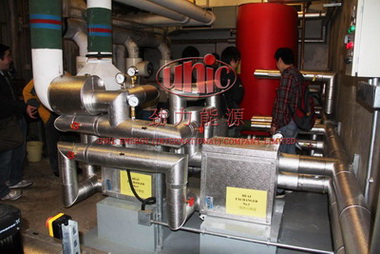

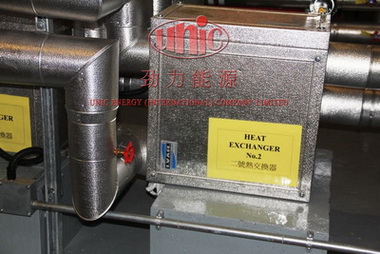

(3) 2 units IVAR Plate Heat Exchanger mod. PGT14 ES32/10/6N-31IK
(熱交換器) [Origin : Italy]
UniGasket mod. PGT14, 31 plates AISI 316L 0.6mm, gasket NBR,
10 bar,4 x male threaded outlet 1¼” stainless steel, Insulation
composed by panels in polyurethane 50mm and aluminum sheet,

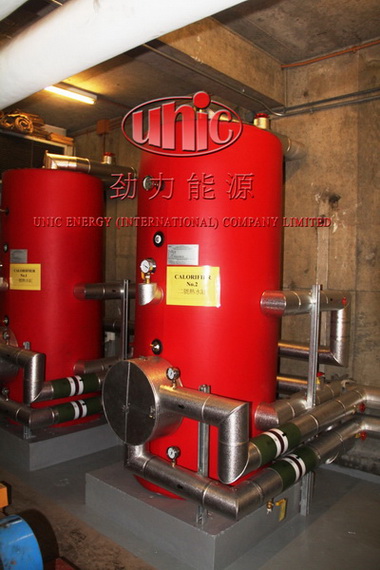

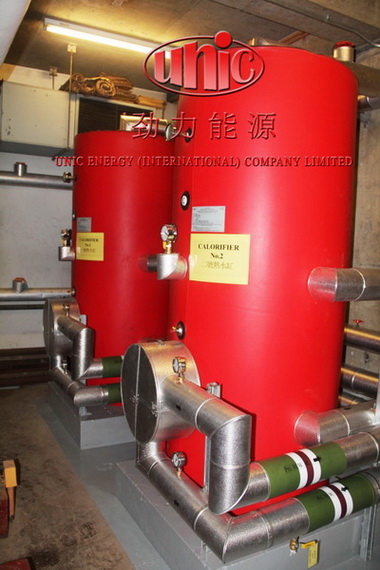

(4) 2 units IVAR Hot Water Calorifier (熱儲水缸) [Origin : Italy]
Cap. 1000 litre, vertical, in galvanized carbon steel,
with coil in finned copper mq 2.27 for max. hot water
temperature 85℃, max. working pressure 6 bar,
complete with magnesium anode and with insulating
cover in polyurethane 50mm thickness,Dimension diam.
800mm x height 2180mm Capacity 37 kW/h (calculated
with primary inlet temperature 85℃ and return 70℃;
secondary inlet 15℃ and storage at 60℃)
(5) Pictures taken for the above-mentioned equipment in the Boiler Room of The Hong Kong Government House are shown page 2 ~ 4 respectively.
